| Hardware Specifications |
|
|
| SOC | Amlogic S905Y4-B |
|
| CPU | ARM Quad 64-bit Cortex-A35 |
|
| DRAM | DDR4 2GB 4GB |
|
| Flash | eMMC 16GB, 32GB，64GB |
|
| Graphics | ARM Mali-G31 MP2 GPU/OpenGL ES3.2,Vulkan1.1 and OpenCL2.0 |
|
| HDR | HDR 10, HLG, HDR 10+ |
|
| ◆OS | Android™ 11 |
|
| DRM | Widevine,Playready |
|
|
| Resolution | 4K60fps |
|
| Ethernet | RJ45 Interface 10M/100M adaptive |
|
| Wi-Fi | 2 x 2 MINO Wi-Fi 2.4GHz/5GHz 802.11a/b/g/n/ac |
|
| Bluetooth | 5.0 |
|
| Video Codes | ·AV1 MP-10@L5.1 up to 4K*2K@60fps
·VP9 Profile-2 up to 4K*2K@60fps
·H.265/HEVC MP-10@L5.1 up to 4K*2K@60fps
·H.264/AVC HP@L5.1 up to 4K*2K@30fps
·MPEG-2 MP/HL up to 1080P@60fps
·Other codecs on request |
|
| Audio Codes | ·AAC-LC & AAC-HE
·MPEG-1 Layers 1,2,3
·Dolby Audio and Dolby Digital Plus
·Other codecs on request |
|
| Container | *.mkv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.mp3 and *.ogg |
|
| Power Supply | External 12V1A |
|
| Power Consumption | 12W Max |
|
| Operating Temperature | 0℃ to 40℃ |
|
| Operating Humidity | 5%-85% Non-condensing |
|
| Size（W*D*H） | 110mm x 110mm x 26mm |
|
| Digital Video | HDMI 2.0 with HDCP |
|
| Micro TF | Support |
| Network | RJ45 LAN |
|
|
|
| Peripheral Interface | 2 x USB2.0 |
|
| Power Interface | DC in |
|
| Dolby Audio | Support |
|
| OtherOther | IR Receiver, Power Indicator, Reset |
| Package Contents |
|
|

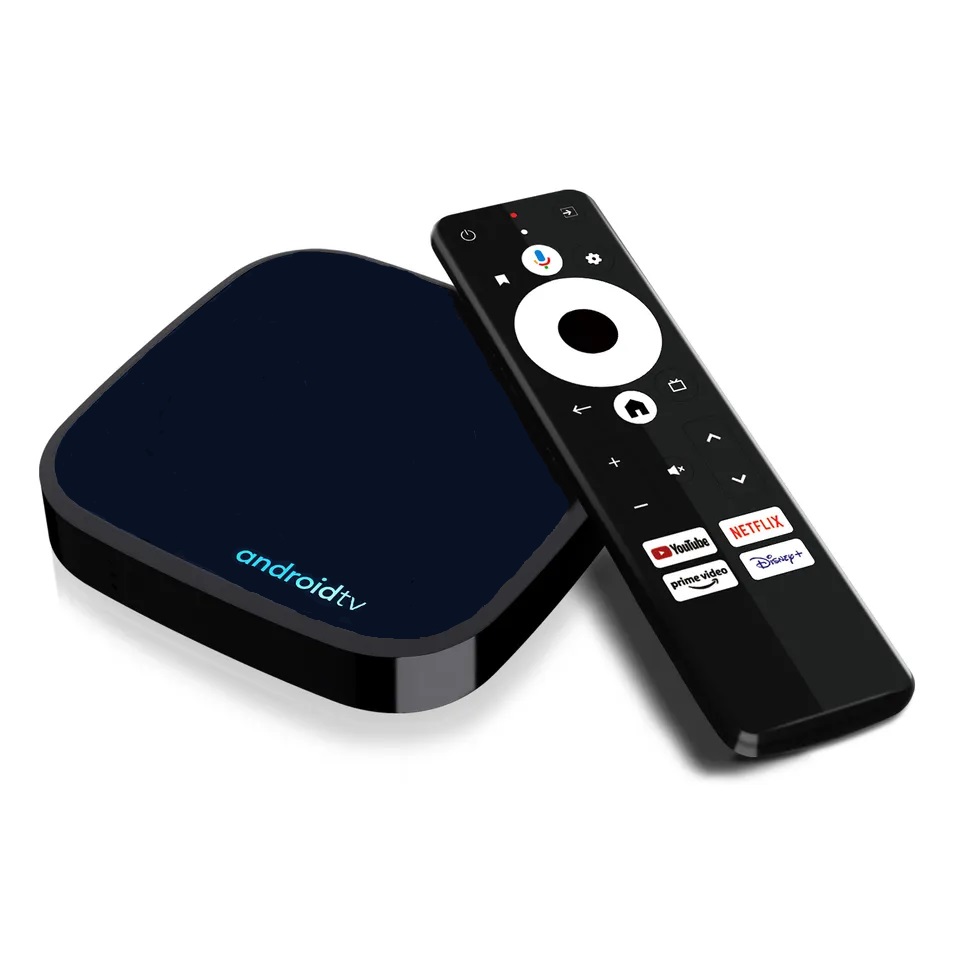

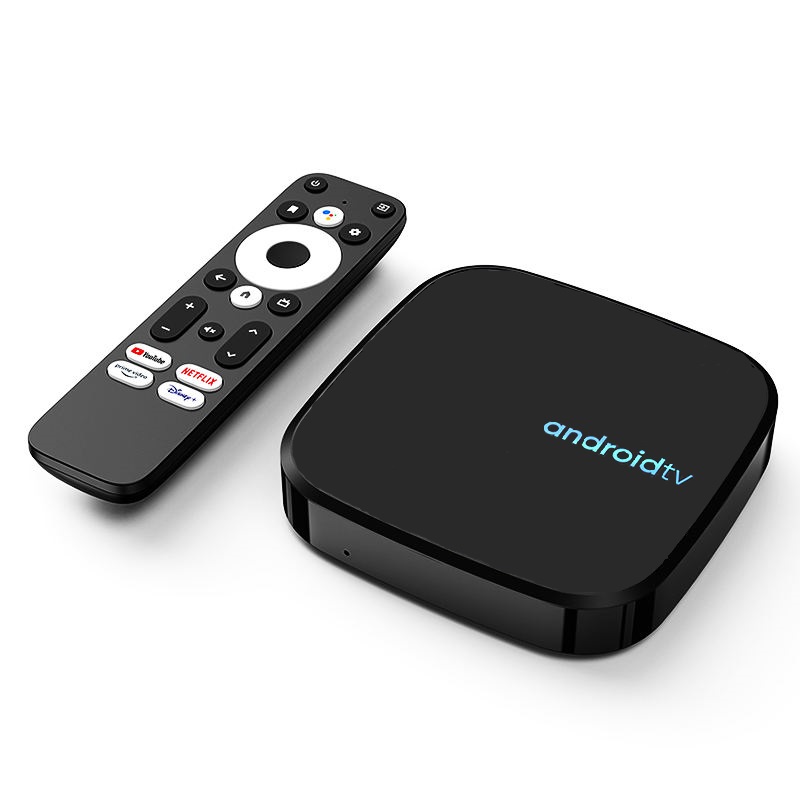

| 1 x Power Adaptor | 1 x HDMI 2.0 Cable | 1 x Quick Guide | 1 x STB Debice | 1 x Bluetooth and IR Remote Control |
|
