| Product Description |

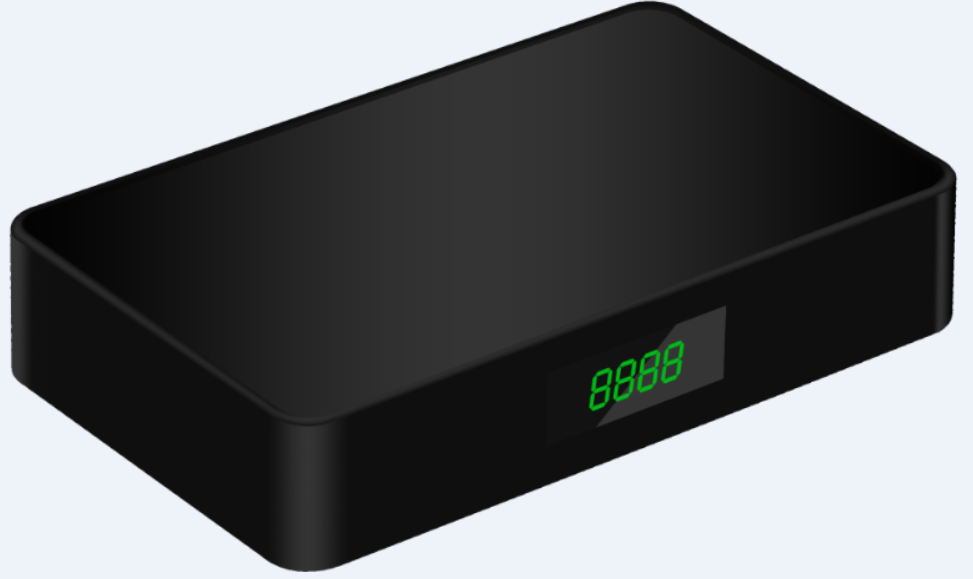

GKH3-T2&S2 is a quad core 4K Android combo Box supporting T2&S2.
Android 4.4.2 operating system
H.264 1080p Video encoding
H.264/H.265 decoding up to 4K×2K@30fps |
| Basic parameters |
| System | SoC: Allwinner H3 |
| CPU: ARM Quad Cortex-A7 up to 1.2GHz |
| GPU: Mali-400P2 |
| DRAM: DDR3 1GB (512MB Optional) |
| Flash: EMMC 8GB( Nand/EMMC 4GB,8GB,16GB,32GB Optional) |
| OS:Android4.4 |
| Network | RJ45 Interface 10M/100M adaptive |
| Build in Wi-Fi 2.4GHz 802.11 a/b/g/n(2.4GHz, 5GHz Optional ) |
| Bluetooth 4.0 ( Optional ) |
| Support most external 3G/4G USB dongle(Optional) |
| Tuner S2 | Tuner+DEMO: AV2012+AVL6862 |
| Frequency Range: 950~2150MHZ |
| Input Level: -65~-25dBm |
| Input impedance: 75Ω |
| Tuner T2 | Tuner+DEMO: MXL608+AVL6862 |
| Frequency Range: (VHF)174~230MHz, (UHF)474~858MHz |
| Input Level: -85dBm~-20dBm |
| Input impedance: 75Ω |
| Network | RJ45, Build in Wi-Fi antenna |
| Peripheral Interface | USB2.0 x2, SD card slot, CA card slot |
| Power Interface | DC 12V |

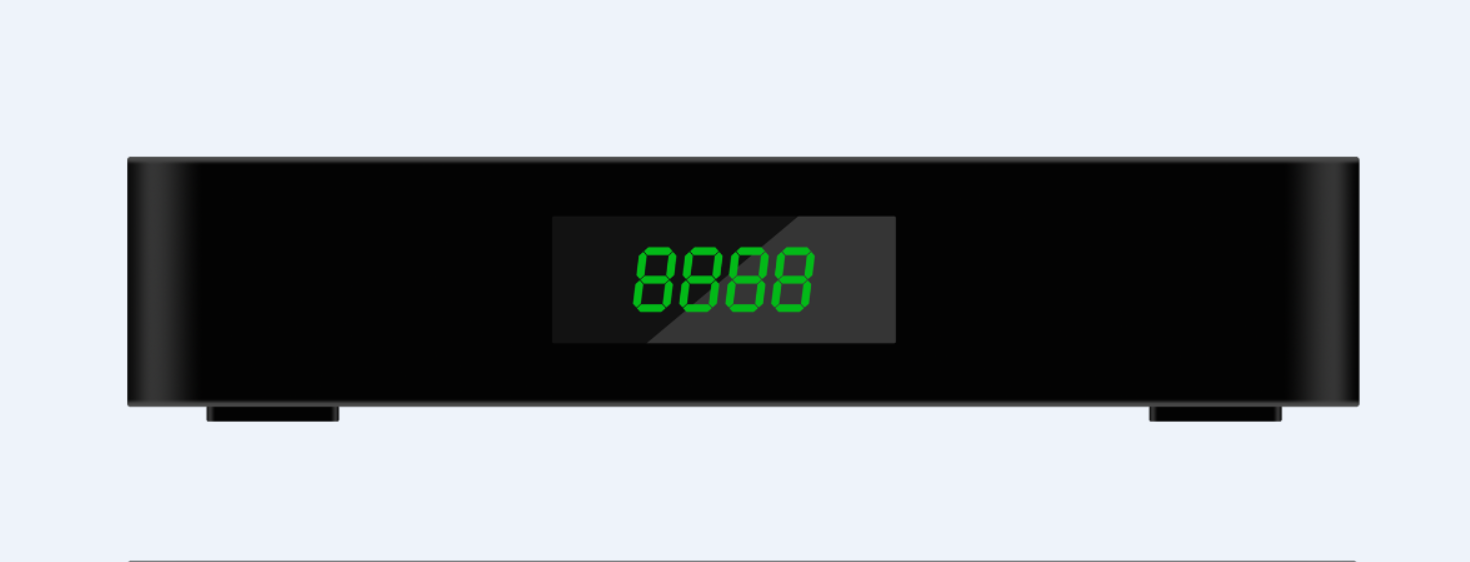

| Other Interface | Front panel: IR receiver, LED indicator

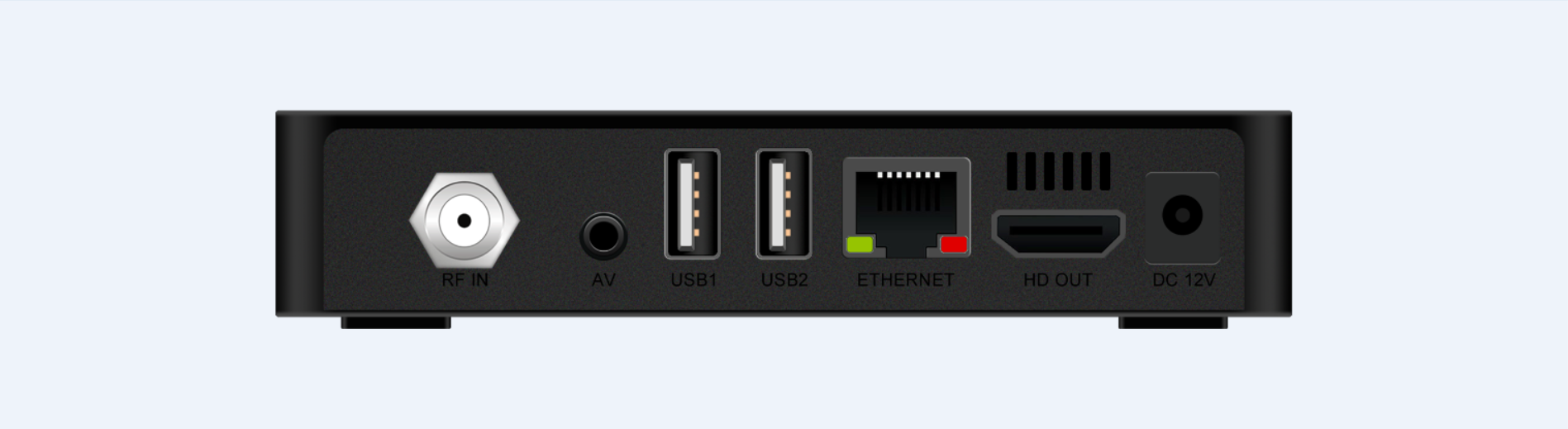

Rear panel: IR IN |
| Media |
| Video | Decoder:
H.265 decoding up to 4K×2K@30fps
H.264 HP@L5.1 up to 4K×2K@30fps
SVC, MVC, VC-1/WMV, AVS, WebM, RMVB, MPEG1/2/4, MJPEG, H.263, DivX 3/4/5, Xvid, Real Video, VP6/8 |
Format:
MKV, TS, M2TS, MOV, MP4, RM, RMVB, AVI, MPG, MPEG, DAT, VOB, FLV etc. |
| Audio | Decoder:
MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4/4.1/7/8/9, WMA Pro, LPCM, PCM, Vorbis, Flac, ALAC, APE, AAC-LC/HEAAC/HE-AAC v2, Real Audio(AC-3 Optional ) |
|
Format:
MP3, WMA, WAV, OGG, M4A, MP4, AAC, APE, FLAC, ALAC, MPEG, MP1, MP2, MPA etc. |
| Subtitle Format | SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation |
| Photo Format | HD JPEG/BMP/GIF/PNG/TIFF |
| Features |
| Digital TV | Fully compliant with HD DVB-S2/DVB-S, 7 days EPG, USB PVR, Timeshift, Program playback, Timing playing |
| CAS | Conax CA (Optional), Patch, BISS, CCCAM, NEWCAM, GSCAM, MGCAM |
| 4K | H.264/H.265 decoding up to 4Kx2K@30fps, Support 4Kx2K max resolution output |
| Network Streaming | HTML5, RTSP, HLS, Smooth streaming |
| Multi-screen interactive | Miracast, DLNA and Airplay |
| System Upgrading | Upgrading via USB disk or SD card, internet |
| Local Media Playback | Video/Audio/Picture |
| External Storage | USB storage, SD card max to 32GB (FAT32/NTFS) |
| Games | Android 2D/3D games |
| APP | KODI(XBMC),Facebook, YouTube, Skype, Google play etc. |
| Other parameters |
| Input Voltage | DC IN 12V/1.5A |
| Power Consumption | 8W Max |
| Operation Temperature | 0~40℃, Humidity<95% |
| Physical characteristics | Size: 140mm*120mm*25mm |
| Weight: 326g |
| Material: plastic+aluminum |
| Proposed Accessory | Remote control and Battery, User manual, Power adapter, AV cable, HDMI cable |
